Portable Veterinary Ultrasound – Kaixin 5600V

The KX5600V provides great image quality and is one of the most affordable scanners with an LED screen on the market today. Most comparable machines sell for $4,999 and above.

Features:

• Lightweight at only 10 lbs, including battery and probe. Similar ultrasounds are around 20 lbs.
• Large 10.4″ LED screen, with full-screen image.

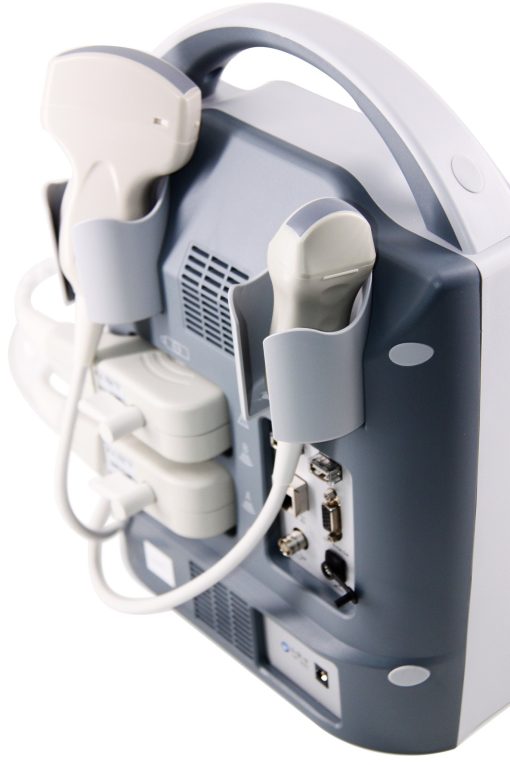

• Two standard probe connectors
• Only veterinary ultrasound with standard DICOM (Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.)
• LED monitor allows outside work in sunlight without a sunshade.
• Anti-dust and anti-splash keyboard is convenient for outside conditions.
• Affordable price, similar models sell for above $4,999.
• 70mm rectal probe lens and 70mm wide image. A wide image is good for seeing big follicles in large animals.

Specifications

• 10.4’ high-resolution color LED back-light display, with high contrast and wide viewing angle.
• Adopt ARM7 embedded control system + FPGA signal processing system + well-selected ultrasound hardware system, all make the unit more stable.
• Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
• Two probe sockets, auto-identify different optional probe
• Body marks：1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position
• Display mode：B、2B、4B 、B/M、M
• Adjustable depth: 10 grades, max depth to 236mm
• Gain：0～127dB
• Contrast：27～90dB
• Gray scale：256
• 8 steps intelligent TGC
• 8 kinds pseudo colors
• Image storage: 4G hard disk to permanently store about 5000 frame images
• Cine loop：256 frames
• Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
  the gravel software package with real-time position line measurement
• Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
• Cardio measurement: Depth, slope, heart rate, cycl；
• OB measurement including Cattle, dogs, horses, cats, goats, camels and sheep, and pre-gestational age birth
• Other measurements: pig’s meat factor measurement
• OB report function
• One-key store: concise and practical
• One-key review: fast, practical image review function
• One-key Print
• One-key Transfer the current frozen image to the net workstation to complete its image text report and print it directly
• Concise and practical, easy operation. The system includes a network workstation to complete data & report management (You don’t need to invest more to buy an extra ultrasound working station which is really complicated and wastes time)
• Unique One-key-light keyboard function for black room use
• Display brightness adjustable
• Dual TV output: PAL/NTSC, can connect video printer when necessary
• Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz
• Power supply adapter output: DC12.8V 3.0A
• Main unit weight：4.5kg（without accessories）
• Main unit dimension：256×150×326mm（L×W×H)

Standard Configuration

• Main unit, 7.5MHz Mult-Frequency Linear Probe, Power Adapter, Two probe sockets, DICOM 3.0

Optional Configuration

• 4.0MHz Mult-Frequency Convex Rectal probe, 6.5MHz Micro-Convex Probe for small animals, 3.5MHz Mult-Frequency Linear Probe, 3.5MHz Mult-Frequency Convex Probe, 6.5MHz Mult-Frequency linear rectal probe, Rechargeable Battery, Trolley, Video printer (UP-897MD), Ethernet Switch, and Foot Pedal.

If you would like to add any of the optional add-ons please contact us.
